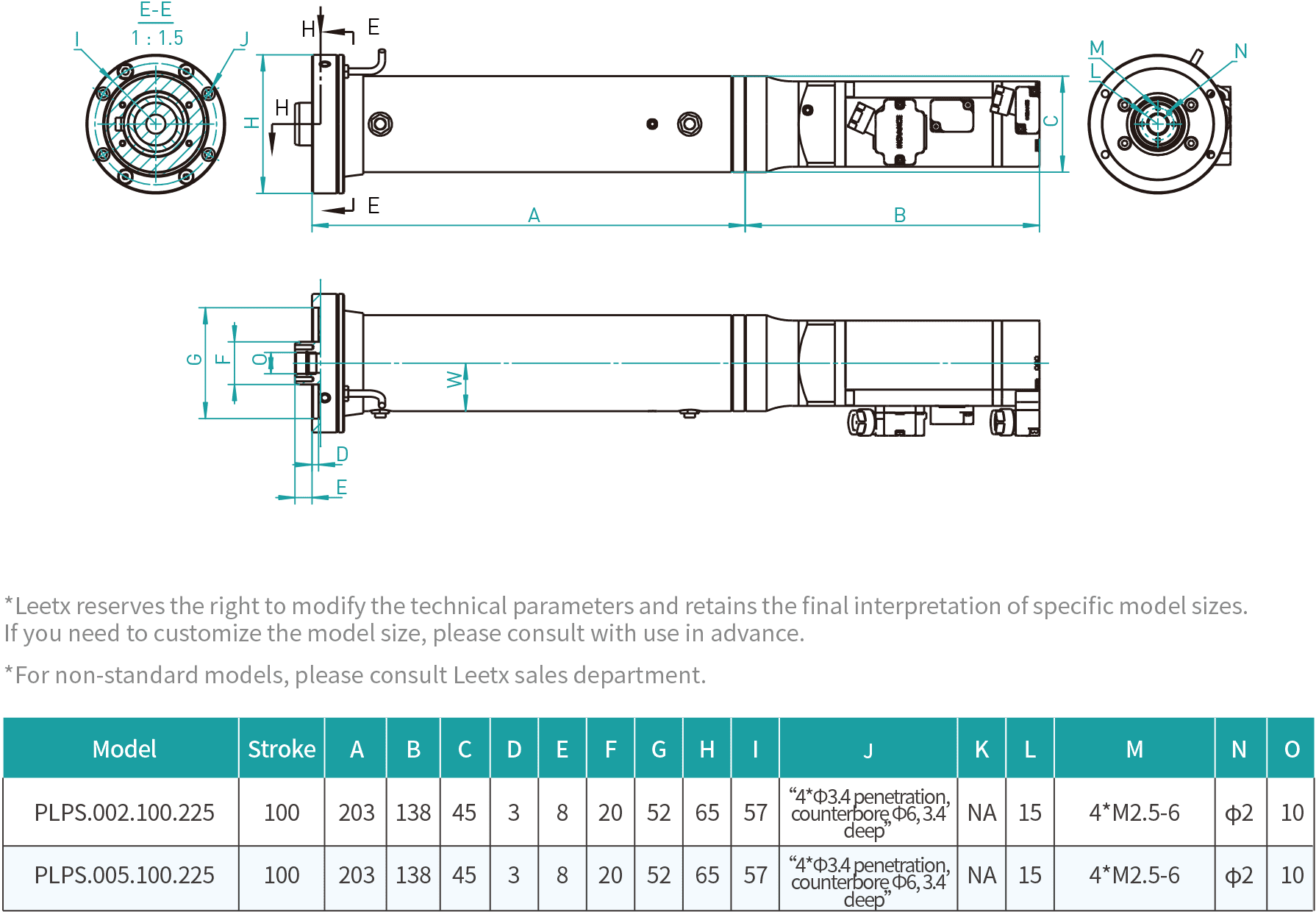

Structure
Features

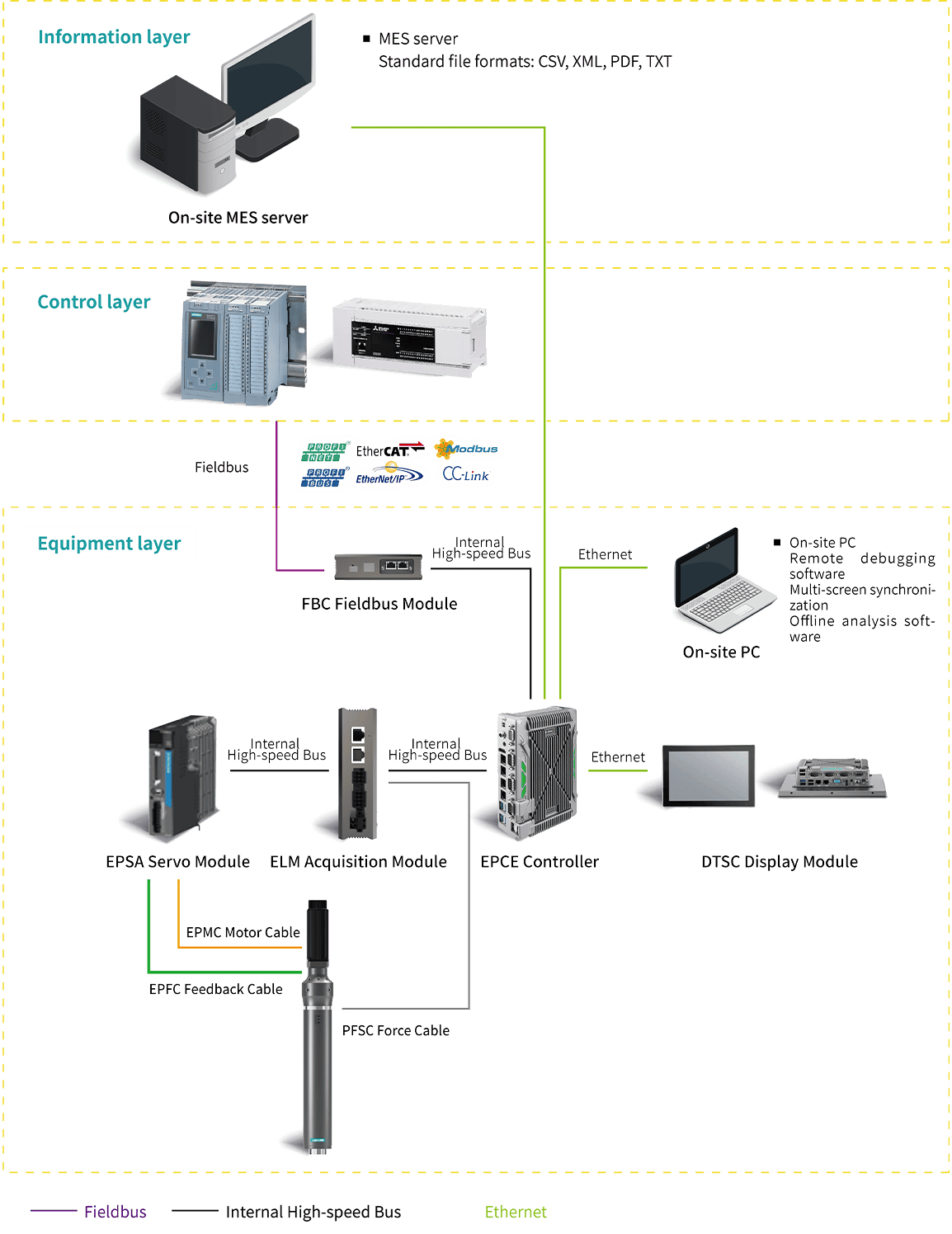

System framework
Product Features & Advantages

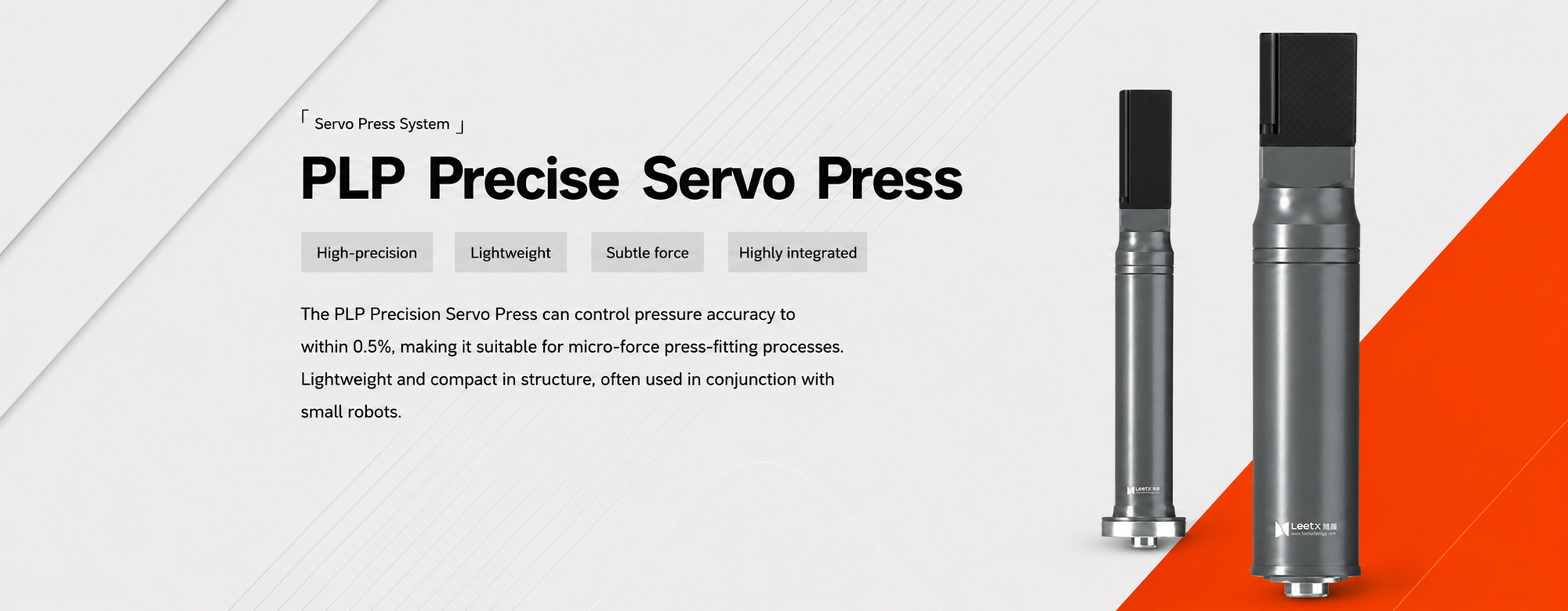

Lightweight and compact
Lightweight and compact in structure, often used in conjunction with small robots
Precision stamping process of first choice
The drive motor integrates a precise absolute position encoder, suitable for ultra-precision assembly tasks with a load of 200 N or 500 N
Extremely high measurement accuracy
The PLP features an integrated high-precision pressure transducer, achieving the pressure control accuracy of up to 0.5%;
Process optimization
Online curve comparison to analyze product consistency，Inflection point triggering and detection，Real-time calculation of assembly time, speed,and mean
Comprehensive process monitoring
The entire motion process can be controlled by setting the triggering area.
High positioning accuracy
Positioning repeatability of 0.01 mm; up to 0.002 mm when using an external displacement sensor.
0.5 %
Pressure control accuracy

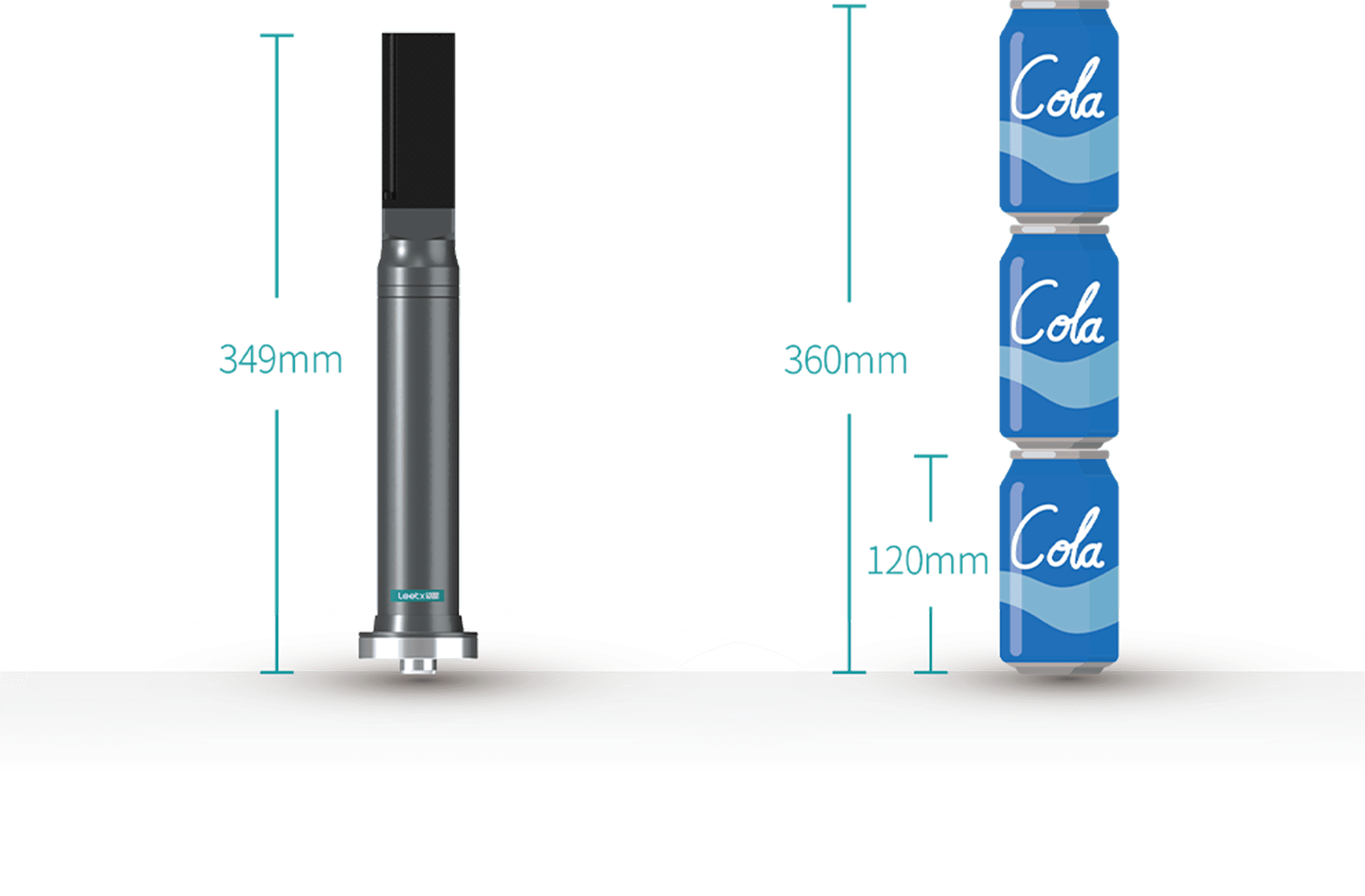

3 cans of soda
The overall height is equal to
200/500 N
Pressure
