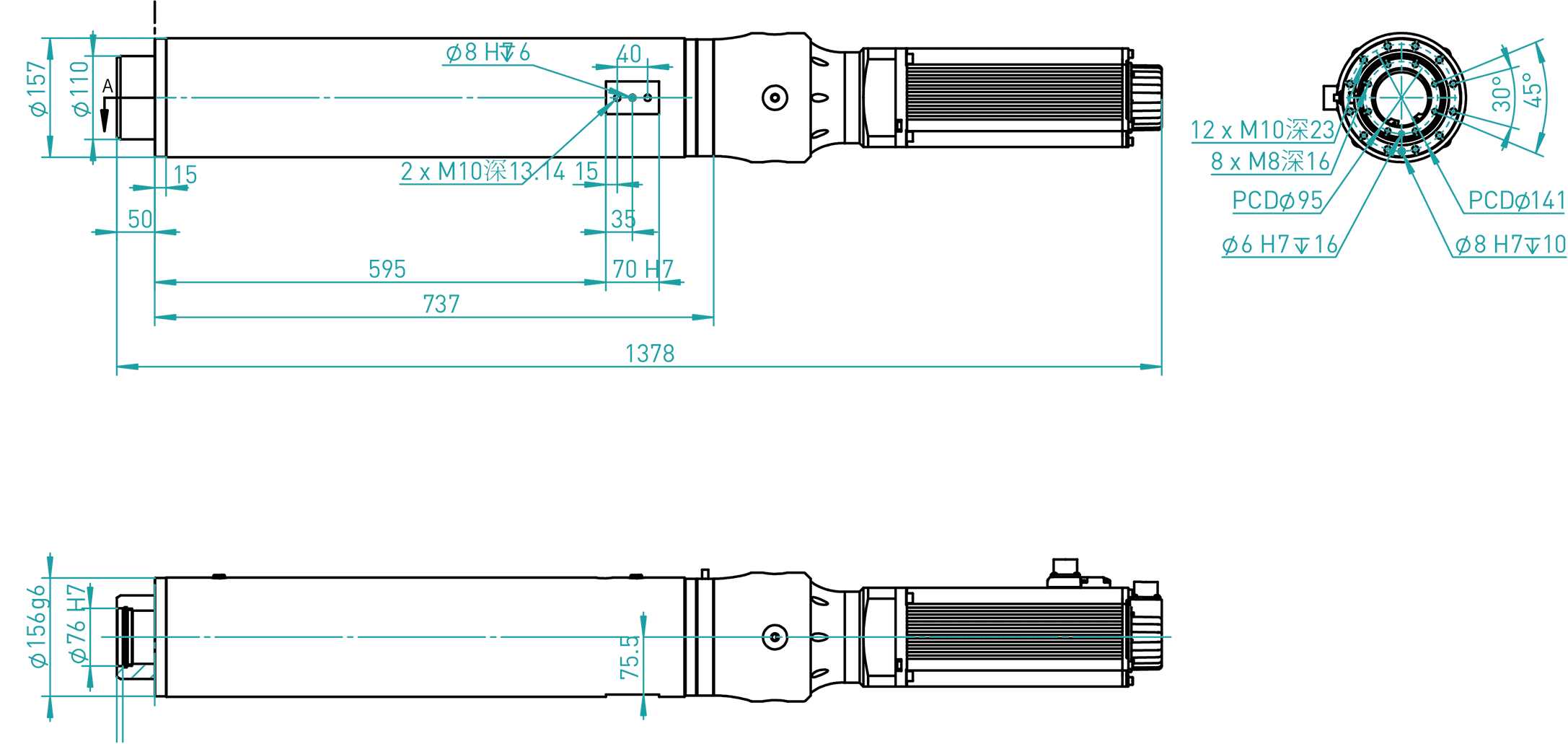

Structure

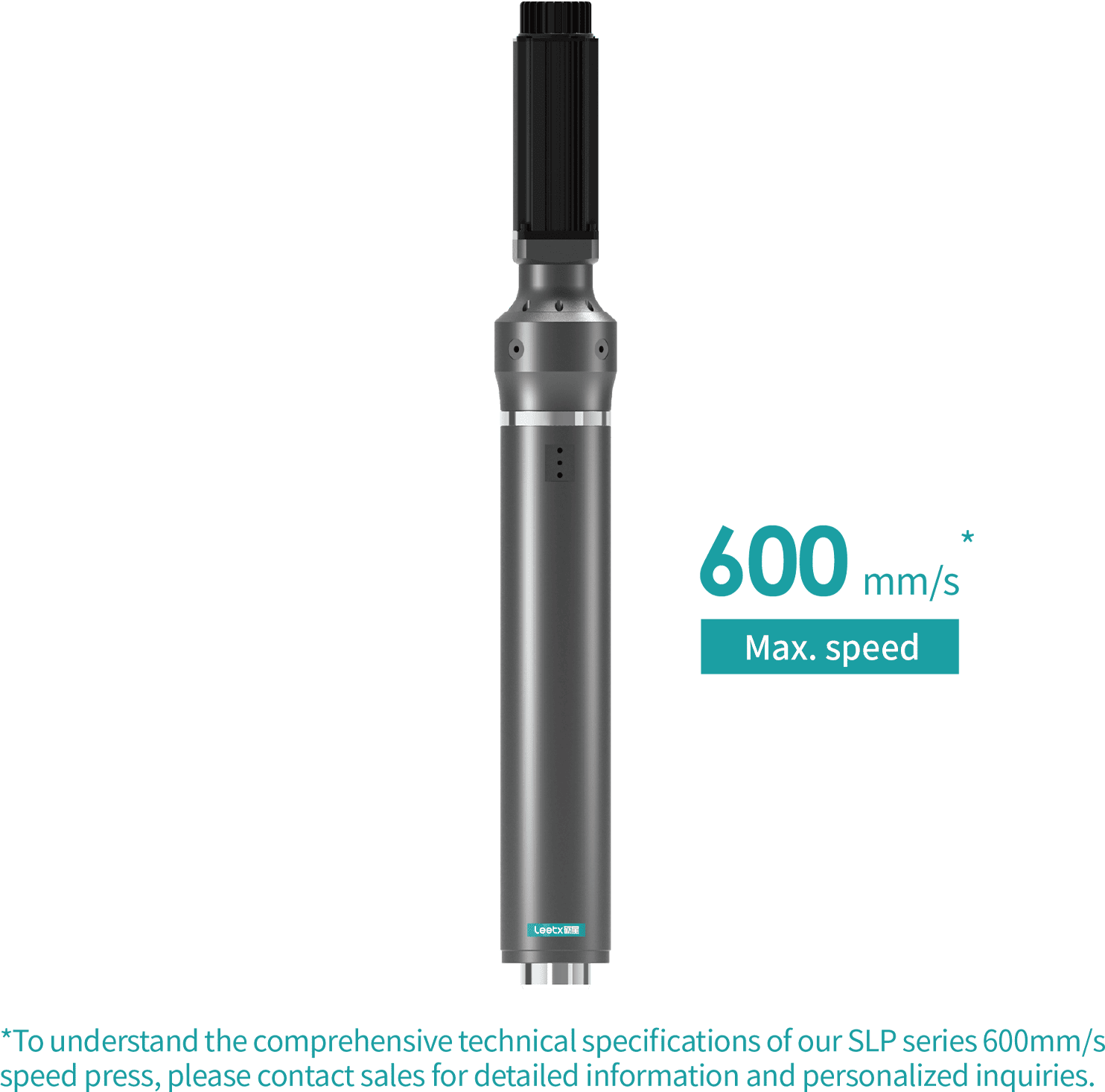

Features

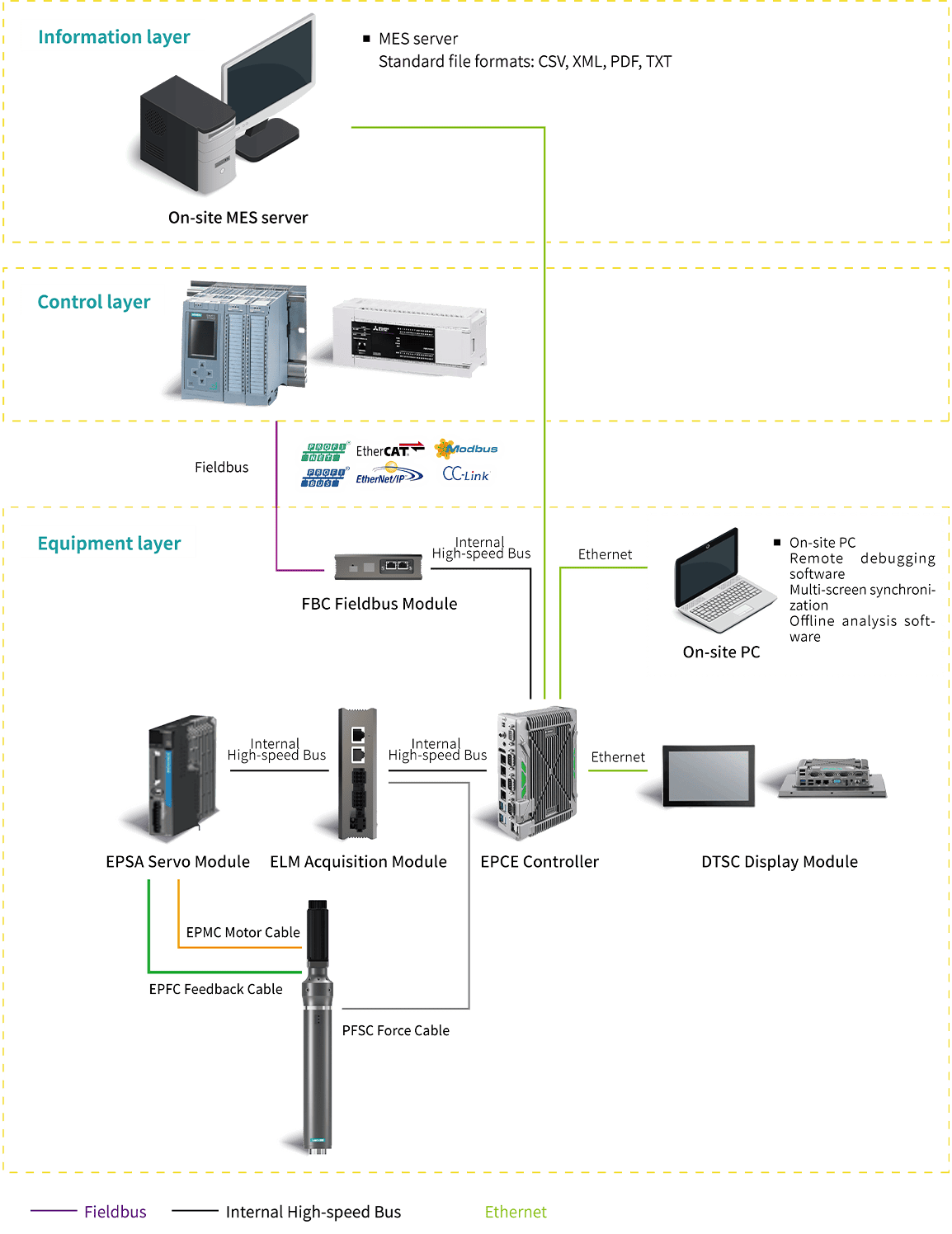

System framework
Product Features & Advantages
Accommodating scenarios that demand short cycle time
The press can achieve a maximum speed of 600 mm/s
Real-time capability
Control cycle of 250 μs, with a high response，Real-time measurement of force and real-time evaluation of curve process
High positioning accuracy
Positioning repeatability of 0.01 mm; up to 0.002 mm when using an external displacement sensor.
Algorithmic diversity
Inflection point triggering and detection
High measurement accuracy
Integrated absolute position encoder and built-in high-precision force sensor; system force accuracy 1%; 24-bit resolution and 10 kHz sampling.
In-house adaptive speed reduction algorithm
The automatic decelerating force control algorithm is designed to adapt to product characteristics,ensuring that the overshoot force is controlled to 1% or less
500 ㎜/s
Maximum speed
30 KN
Maximum pressure
400 ㎜
Maximum stroke
